graphene production

NanoXplore manufactures high volumes of graphene powder for industrial customers,and a range of standard and custom plastic products.

A PROVEN TECHNOLOGY

GRAPHENE PRODUCTION PLATFORM

icon 1

Proprietary knowledge

process, and expertise

  • Enables customers to improve final products and components using graphene, across many industries and applications
  • Protected by 2 granted US patents, and 3 pending patents
icon 2

Graphene production process
is low cost, large volume,
and highly scalable

  • Graphene competitive with carbon black for tires, plastics, batteries, paints, and many other applications
  • Patented production process is very high yield, environmentally safe
icon 3

Highly Scalable

  • Scalability rigorously demonstrated at lab scale (kg/year), production pilot (4.5 tonnes/year) and with full production equipment (25 tonnes/year).
NanoXplore, This mark will be applied to graphene and polymer products

Graphene, a two-dimensional layer of carbon, was discovered in 2004 by two researchers from Manchester University and their discovery resulted in a Nobel Prize in 2010.“It is the thinnest material known to man, with an exceptionally high theoretical surface area (2630 m2 per gram). Atomically, it is the strongest material ever measured, is extremely elastic (stretchable), and has exceptional thermal and electrical conductivity, making it the substance a design engineer's dreams.” “With the discovery of graphene in 2004, we have entered a new age of materials and materials science.” Quoted from “Graphene, From Lab to Technology,” ISBN: 978-3-527-33833-7

unique properties

of graphene

  • 300 Times stronger than steel
  • 100 times more conductive than copper
  • Hydrophobic
  • Highest thermal transfer material available
  • Formable into multiple alloys and compounds
  • Improves on graphite properties

PRODUCTION

hexo-g

HeXo-G graphene is a highly versatile, graphene powder suitable for most customer applications.HeXo-G graphene has been optimized to provide the best balance of mixability and manufacturability. This has allowed NanoXplore to focus on increasing manufacturing volumes and driving out costs. HeXo-G graphene is suitable for a wide range of applications but is especially useful for improving polymers and for advanced battery solutions.

READ MORE

NanoXplore’s proprietary production process gently and efficiently creates pristine few layer graphene without creating crystalline defects. Graphene without defects however, does not bond easily with other materials and therefore it can be difficult to mix the graphene. heXo-G graphene is edge activated during production, providing chemical structures available to promote mixing.

HeXo-G graphene has been optimized to provide the best balance of mixability and manufacturability. And this has allowed NanoXplore to focus on increasing manufacturing volumes and driving out costs.

Unlike low grade graphene, NanoXplore’s heXo-G graphene provides significant thermal, electrical and mechanical improvements at low loadings.

For more information or to place an order for heXo-G graphene, visit heXo-G website
or see our data-sheet.

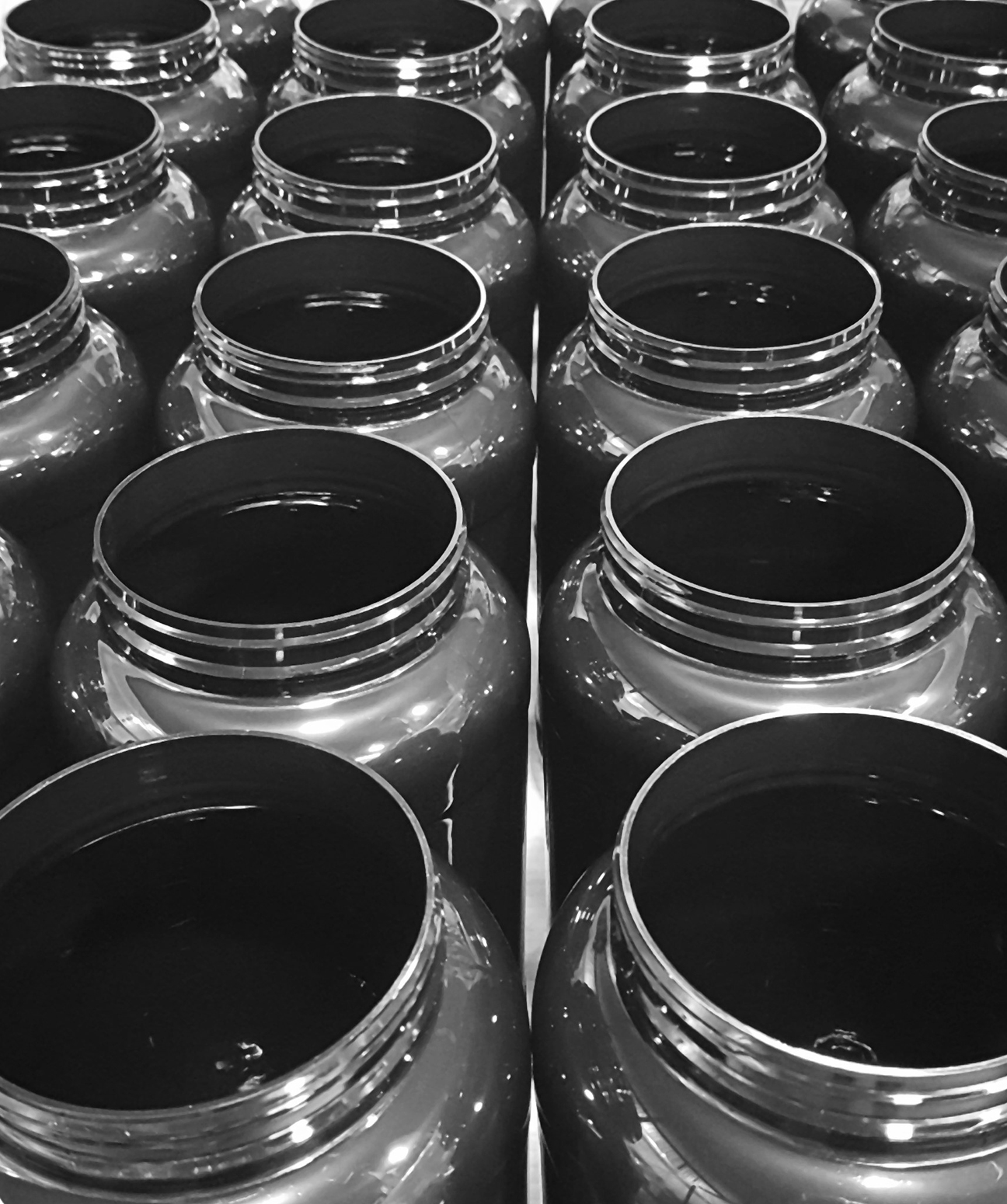

Graphene Enhanced Plastics

NanoXplore provides customers with graphene-enhanced plastics, including master batches in pellet form. NanoXplore’s ability to tailor the final properties of plastics by adding graphene, paves the way for graphene-enhanced plastics in real world products such as electric vehicles, electric motors, food and chemical packaging, and electronic enclosures.

READ MORE

Many customers want to replace metals with plastics. Plastics are low cost, light weight, their high toughness simplifies integration, they are relatively easy to shape using molding and/or 3D printing approaches, and resulting materials do not rust. However, replacing metals with plastics requires improved the plastics’ electrical, thermal, and mechanical properties of plastics. NanoXplore’s graphene enhanced plastics provide new opportunities to move from metal to plastic products.

NanoXplore offers customers graphene enhanced polymers in pellets; customers are familiar with this form factor and there are well-known and minimal costs to incorporating the pellets into standard plastic forming processes (e.g., blow molding, injection molding, thermoforming). No longer do industrial customers need to think about mixing powder into their existing processes.

For more information, please visit heXo-G website

BATTERY MATERIALS

NEXT GENERATION BATTERIES

Graphene-based nanomaterials applications hold the promise of great improvements in energy-related fields. NanoXplore is actively developing materials to improve both energy capacity and charge rates in rechargeable batteries. NanoXplore’s graphene is especially suited to electrode-based energy solutions and specifically, for improving the performance of Li-ion anodes and LiS (lithium sulphur) cathodes.

READ MORE

Current Li-ion anodes are made from graphite while new generation anodes are being fabricated from composites such as silicon-carbon. Graphene composite anodes have demonstrated better performance in the areas of power density, energy density, and battery cycle life.

Graphene composites can provide production advantages while also helping to address the overheating and swelling problems experienced by advanced battery cells.

NanoXplore, NEXT GENERATION BATTERIES
NanoXplore: CUSTOMIZED GRAPHENE SOLUTIONS

APPLICATIONS

CUSTOMIZED GRAPHENE SOLUTIONS

As both a manufacturer and compounder of graphene, NanoXplore has the expertise to create solutions to customers’ problems. Please see Applications for examples of customer solutions we have developed. For other products, solution and applications please contact our team.

DID YOU KNOW?

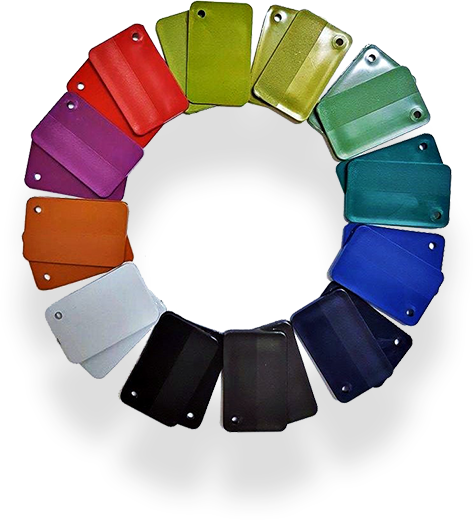

NANOXPLORE BRINGS COLOURS TO THE WORLD OF GRAPHENE

NanoXplore brings color to the world of graphene! Our polypropylene composites with 1% graphene (by weight) are now available in variety of colors. NanoXplore's graphene-enhanced thermoplastics have already improved mechanical, thermal, and electrical properties. Adding color to graphene, opens the door to many new and exciting applications.

NANOXPLORE BRINGS COLOURS TO THE WORLD OF GRAPHENE

CASE STUDY

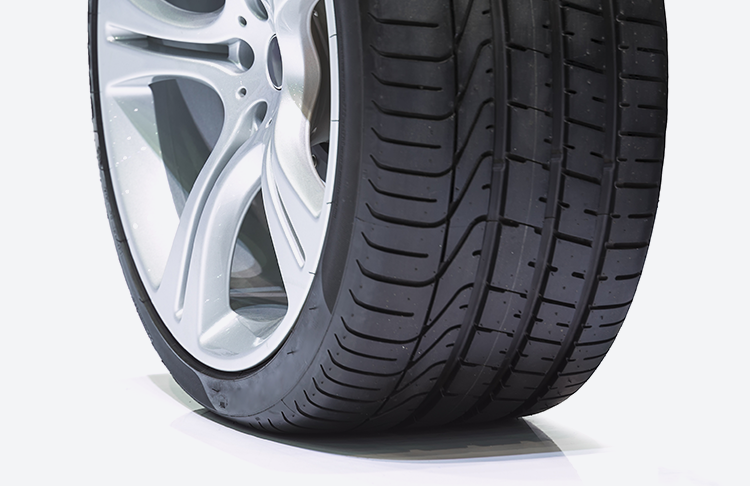

TIRES : A SUSTAINABLE SOLUTION

The global carbon black market was valued at US$ 8.2B in 2014, and 70% was used to reinforce tires (Grand View Research). Carbon black is critical to tire performance including traction, stopping distance and longevity. Carbon black loading levels of 25-50 weight% are typical for tires. The industry trend is to move from the cheapest carbon black to higher cost and higher performance versions, and to increase the carbon black content.



NanoXplore, TIRES : A SUSTAINABLE CASE STUDY

Problem

At high carbon black content, mechanical performance of the tires begins to degrade, and additional additives are required to maintain processing capabilities.

Solution

NanoXplore heXo-G graphene can achieve the same performance as carbon black in tires at a fraction of the loading levels.

NanoXplore can provide very low cost, pristine graphene at high volumes.

Opportunity

Replace carbon black by heXo-G graphene as an additive in some tire applications.

1.    Comparable cost

2.    Better performance

3.    Improved processability.
